Tank Level Indicator – Model CROW

The CROW Tank Level Indicator is suitable for all types of tanks and provides visual and audible alerts for low and full tank levels. It works with metal sensor kits and requires only two wires for installation. Easy to install and compatible with plastic and cement tanks.

Product Details Video:-YOU TUBE VEDIO

Features

• Suitable for all types of tanks
• Low and Full tank alarms

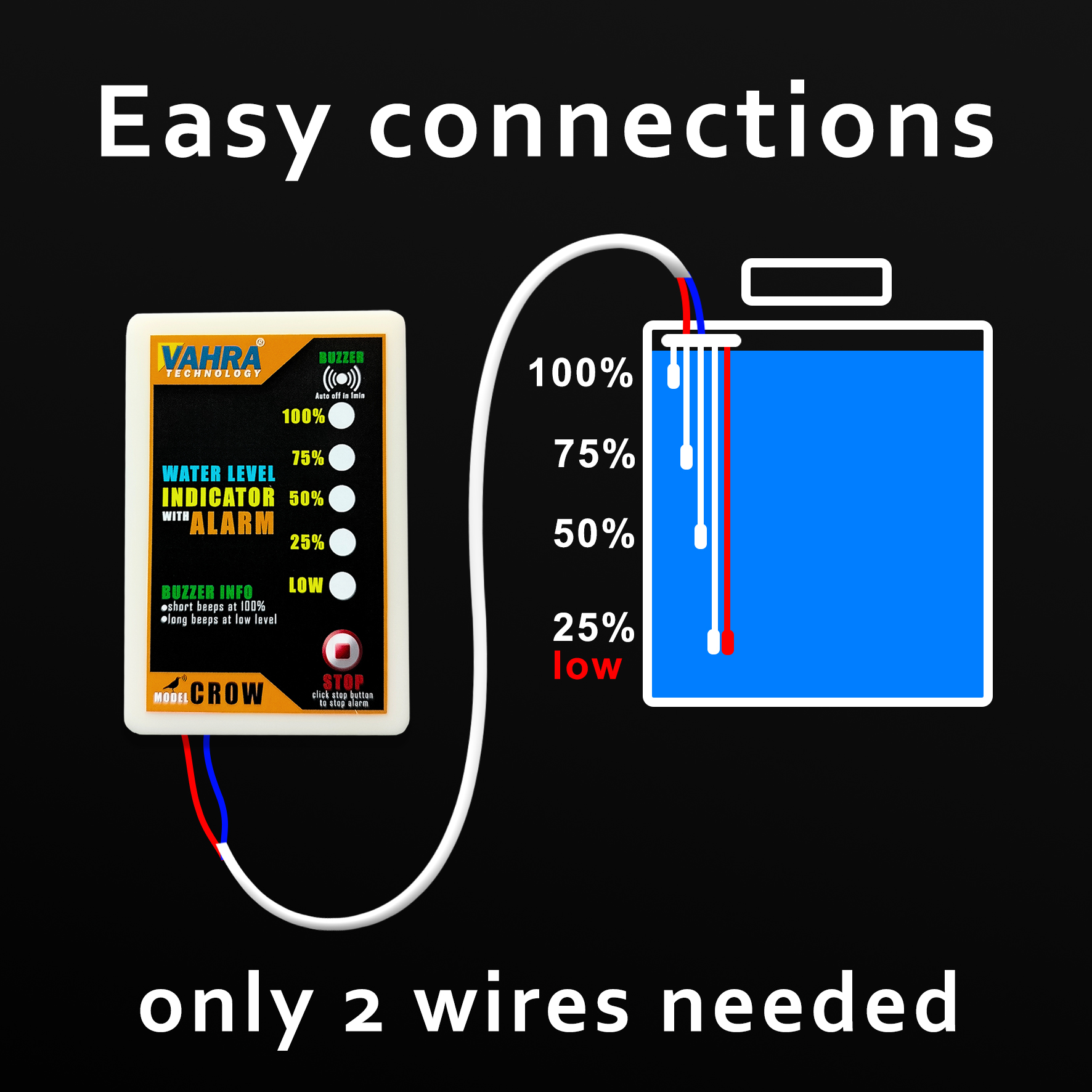

• Only 2 wires required for overhead tank
• Works with metal sensor kit

2-Mode Operation

• AUTO – Automatic tank monitoring
• OFF – All alarms disabled

Protections

No additional protections required for this model.

Description

This tank level indicator shows the water level using LEDs: Low, 25%, 50%, 75%, 100%. It emits a medium single beep after 10 seconds (repeating 30 times) when the tank level is low, and a continuous high beep for 1 minute when the tank is full. You can stop the beep once by pressing the button.

Switch Mode

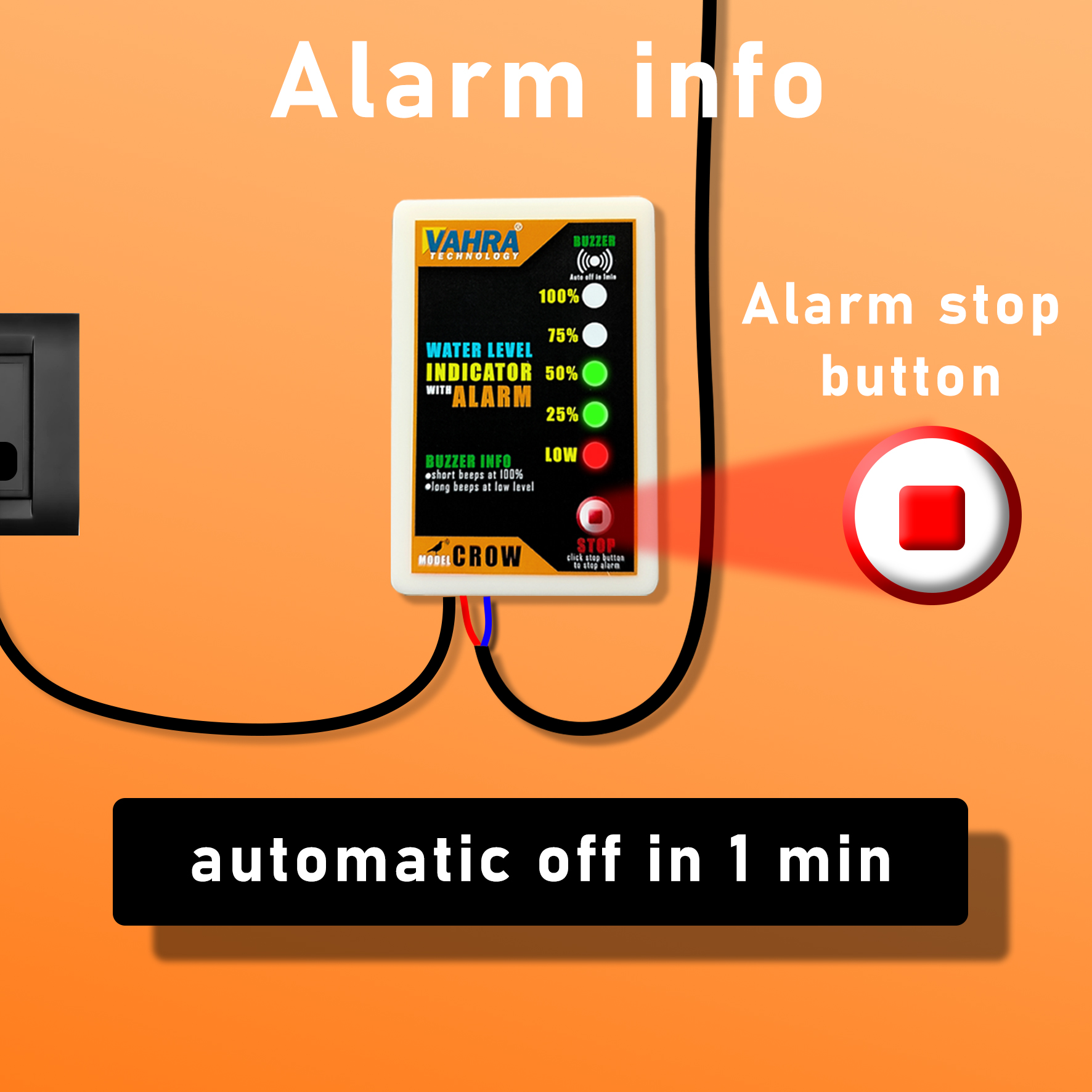

• Push type: Press button to stop beep temporarily

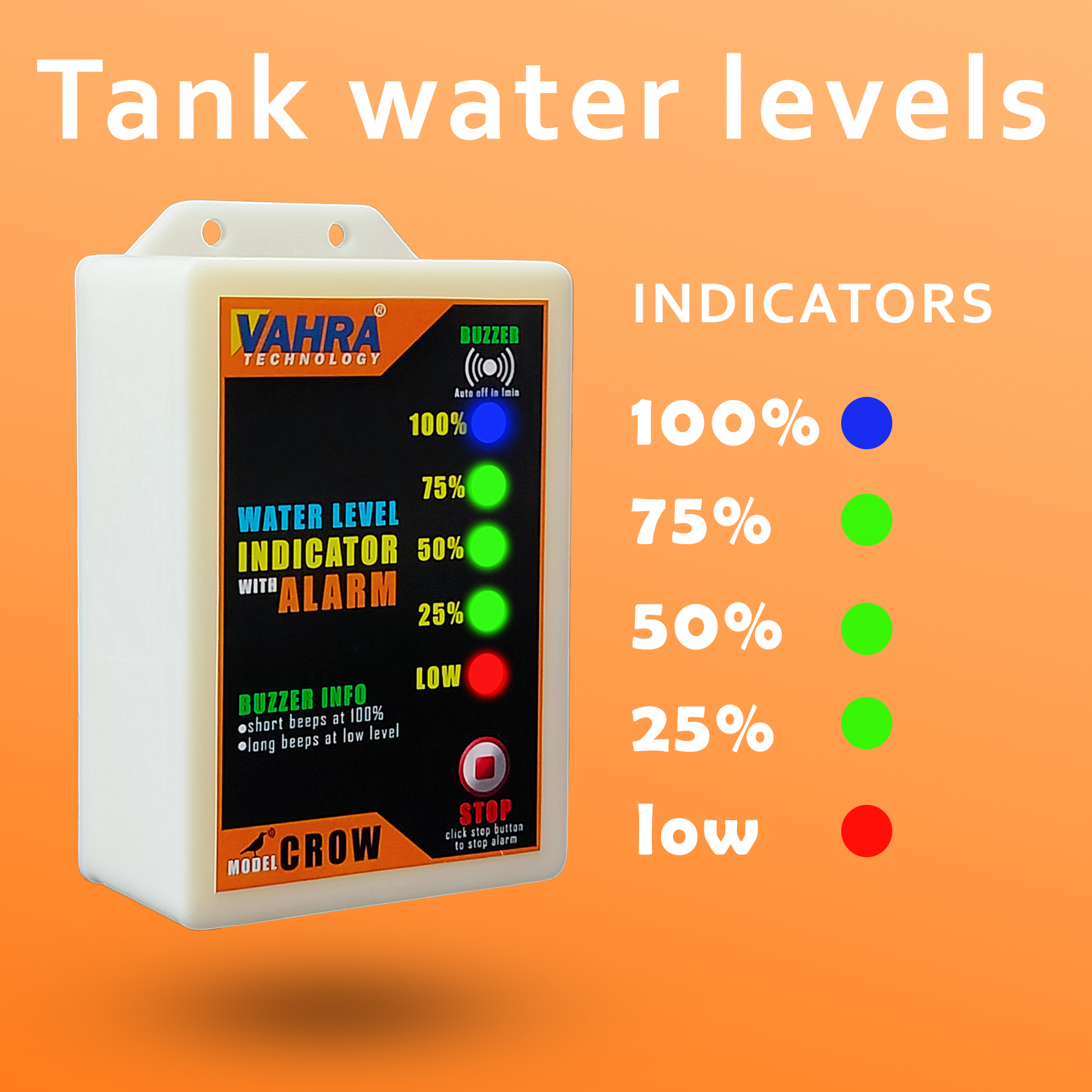

Indications

• Low LED – Red
• 25% LED – Green
• 50% LED – Green
• 75% LED – Green
• 100% LED – Blue

Product Specifications

• Operating voltage: 170V AC to 290V AC
• Frequency: 50–60Hz
• Current consumed: 6W
• Sensor operating voltage: 5V DC
• Compatible with plastic and cement tanks

Sensor Specifications

• Current-uA (in stainless steel metal sensor for long life)
• Easy installation

Packaging

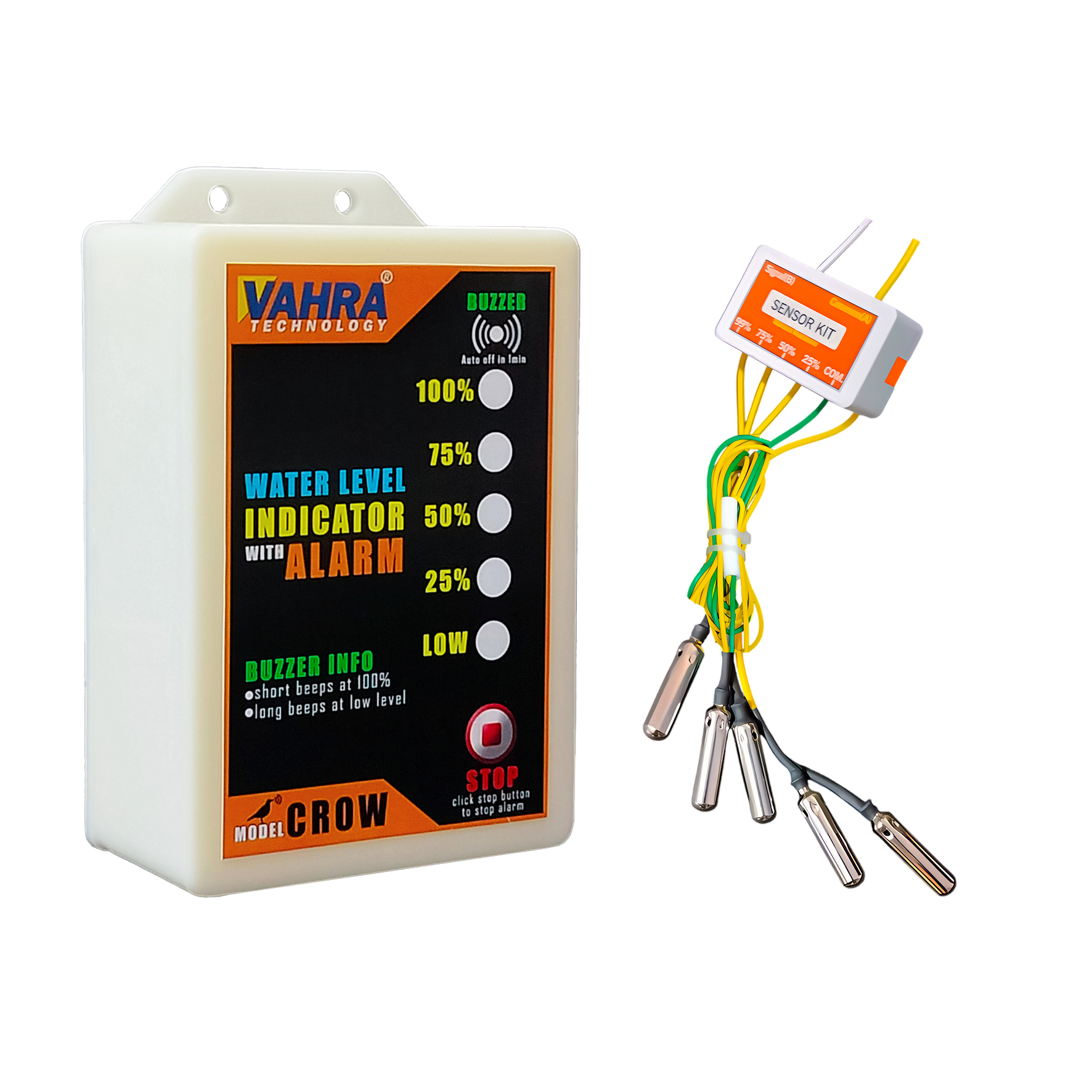

• 1 Water Level Indicator – Model CROW
• 1 Sensor Kit
• 1 Fitting Diagram
• 1 Warranty Card
• Company Contact Details
