Semi Automatic Water Level Controller for tank overflow–Model EMU2

The EMU2 is a semi-automatic water level controller designed to turn the motor OFF automatically when the tank becomes full. The motor can be started manually by the user. This device works with only two wires for the tank and is compatible with all types of starters as well as motors without starters.

Features

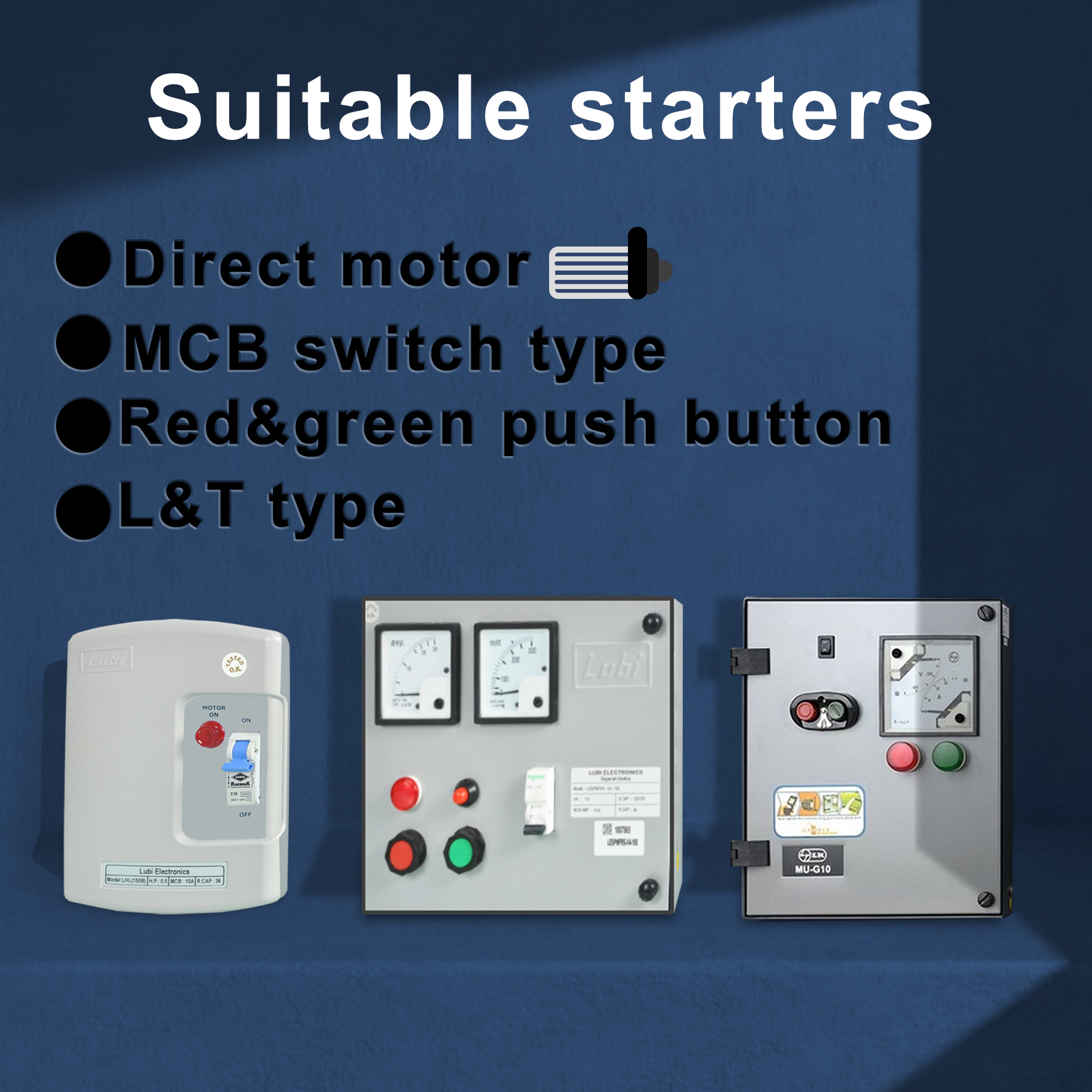

• Suitable with all types of starters and also without starter
• Semi automatic operation based on tank water level
• Automatically turns OFF motor when tank becomes full
• Only 2 wires required for overhead tank

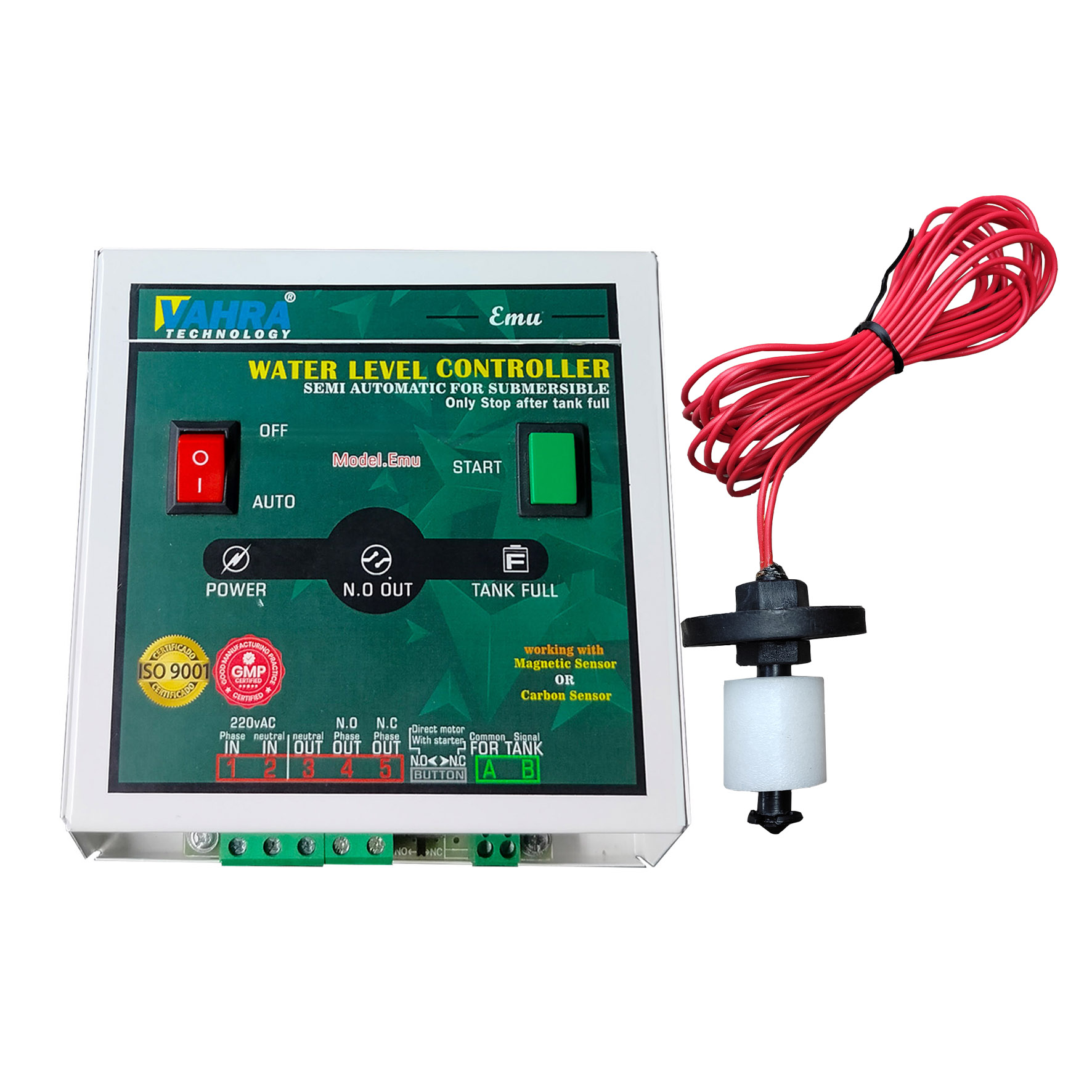

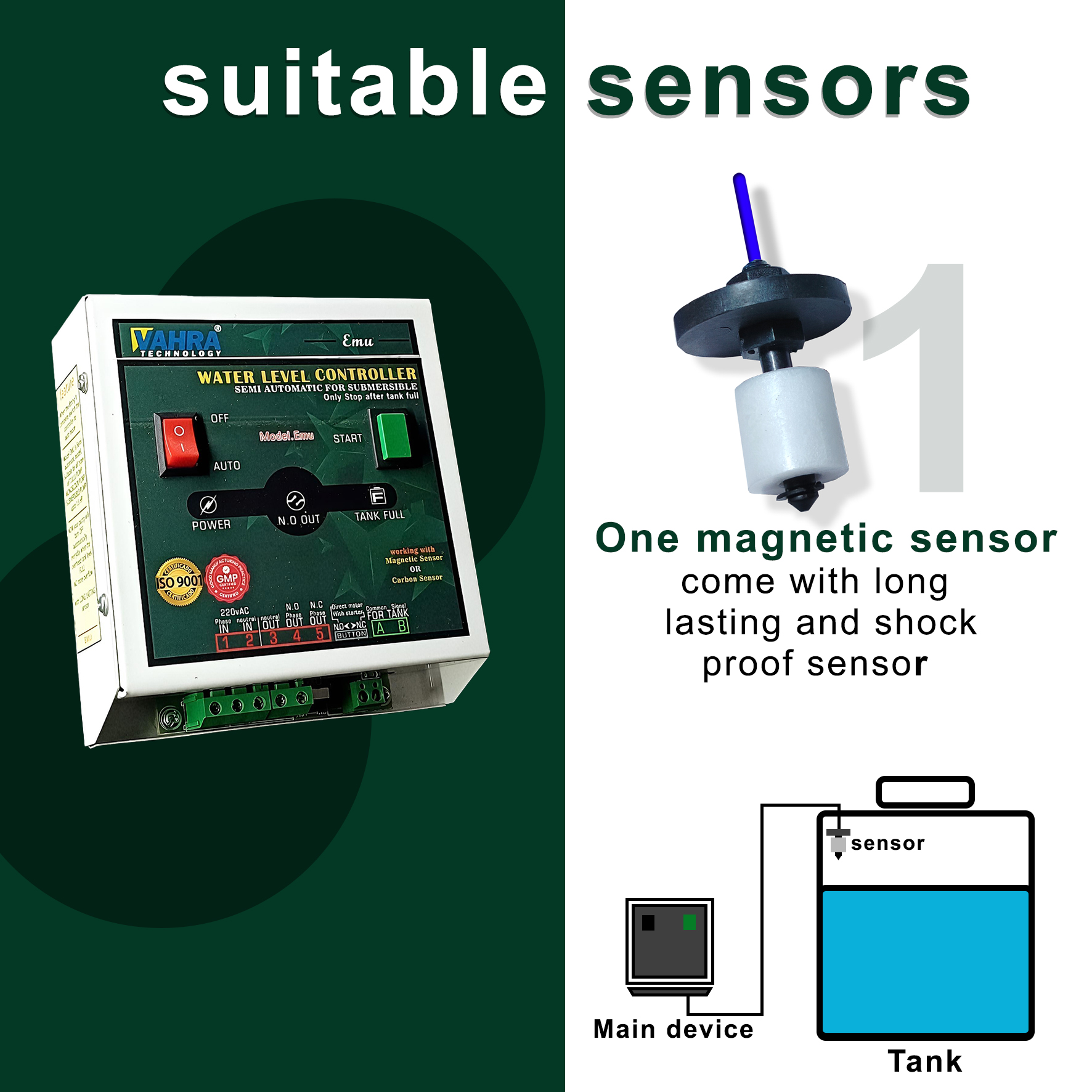

• Works with carbon sensor kit or magnetic sensor kit
• Saves water, electricity, and time

2-Mode Operation

• AUTO
• OFF

Protections

No additional protections required for this model.

Description

This is a semi-automatic water level controller for tank overflow ,that switches OFF the motor automatically when the tank becomes full. The motor needs to be turned ON manually by the user. It works using only two wires connected to the tank sensors and can be installed with all types of starters or even without a starter motor.

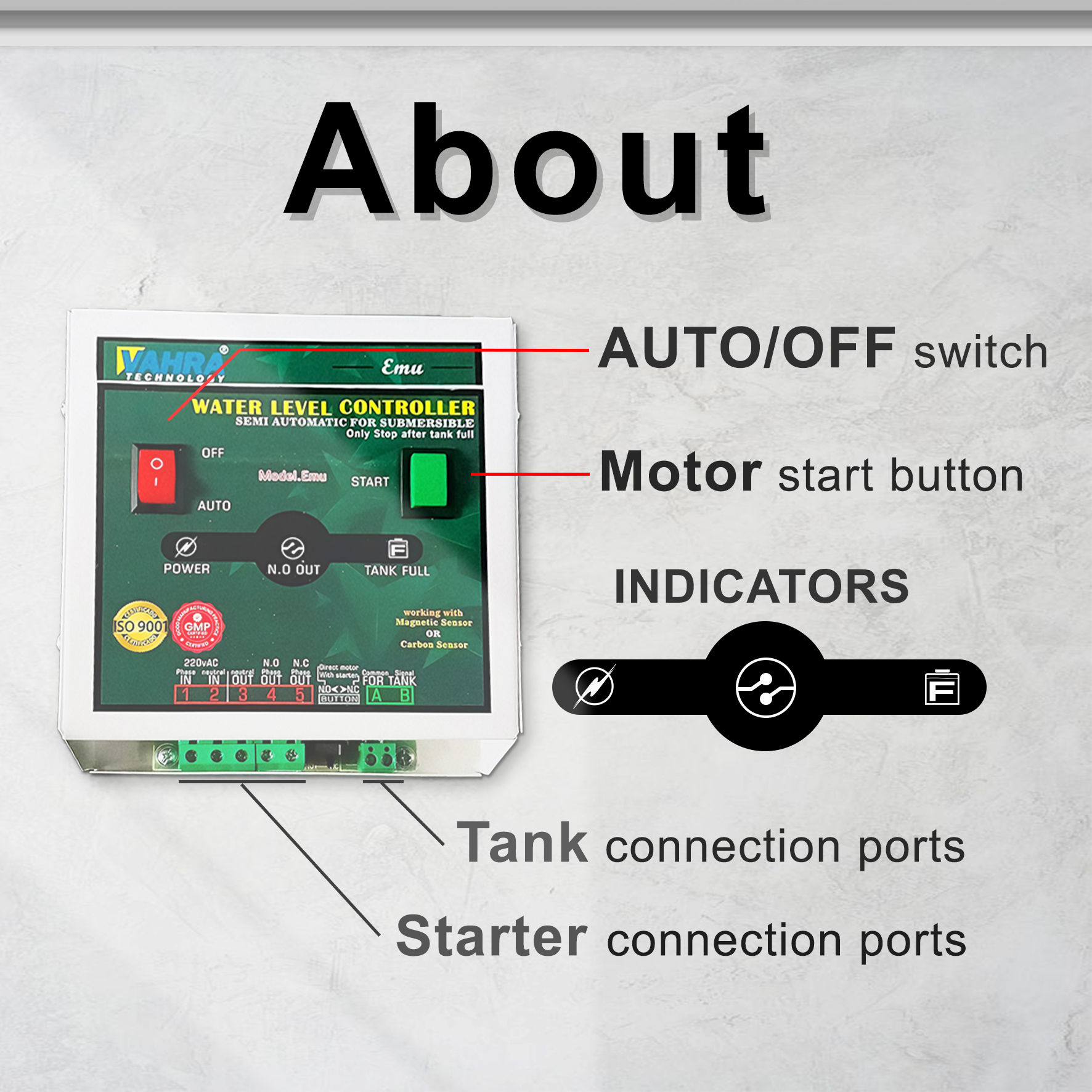

Switch Mode

• Up: OFF Mode – Controller remains switched off
• Down: AUTO Mode – Device operates automatically

Push Button

• Motor can be turned ON manually using this button when installed without a starter

Indications

• Motor ON LED
• Tank Full LED
• N.O Output LED

Product Specifications

• Operating Voltage: 170V AC to 290V AC
• Frequency: 50-60Hz
• Power Consumption: 6W
• Sensor Operating Voltage: 5V DC
• Relay Rating: 30A (Heavy Duty)
• Suitable for motors up to 2HP

Sensor Specifications

• Ultra-low current (µA) carbon sensor for long life
• Easy installation

Packaging

• 1 Water Level Controller – Model EMU2
• 1 Sensor Kit
• 2 Gitti Screws

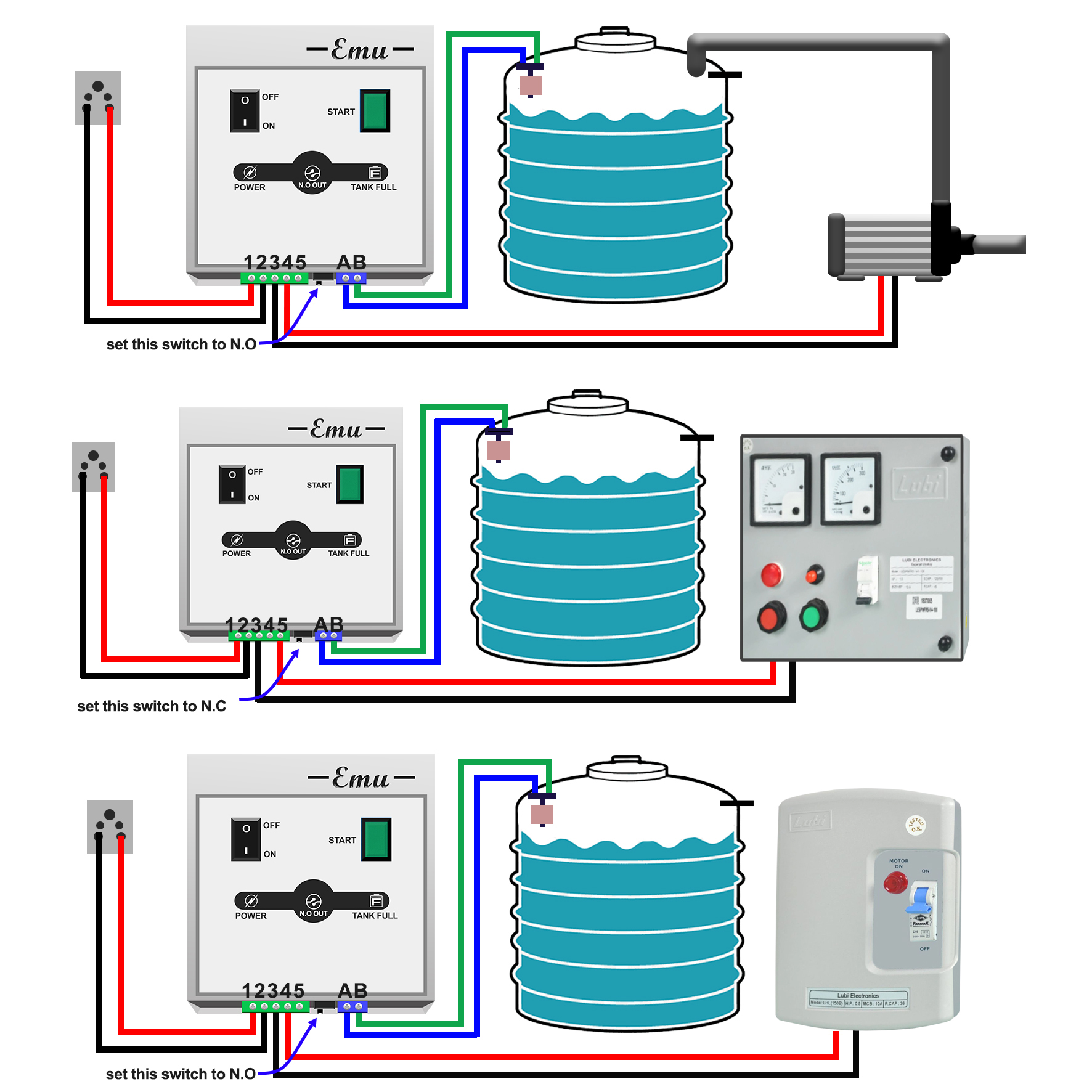

• 1 Fitting Diagram
• 1 Warranty Card
• Company Contact Details
