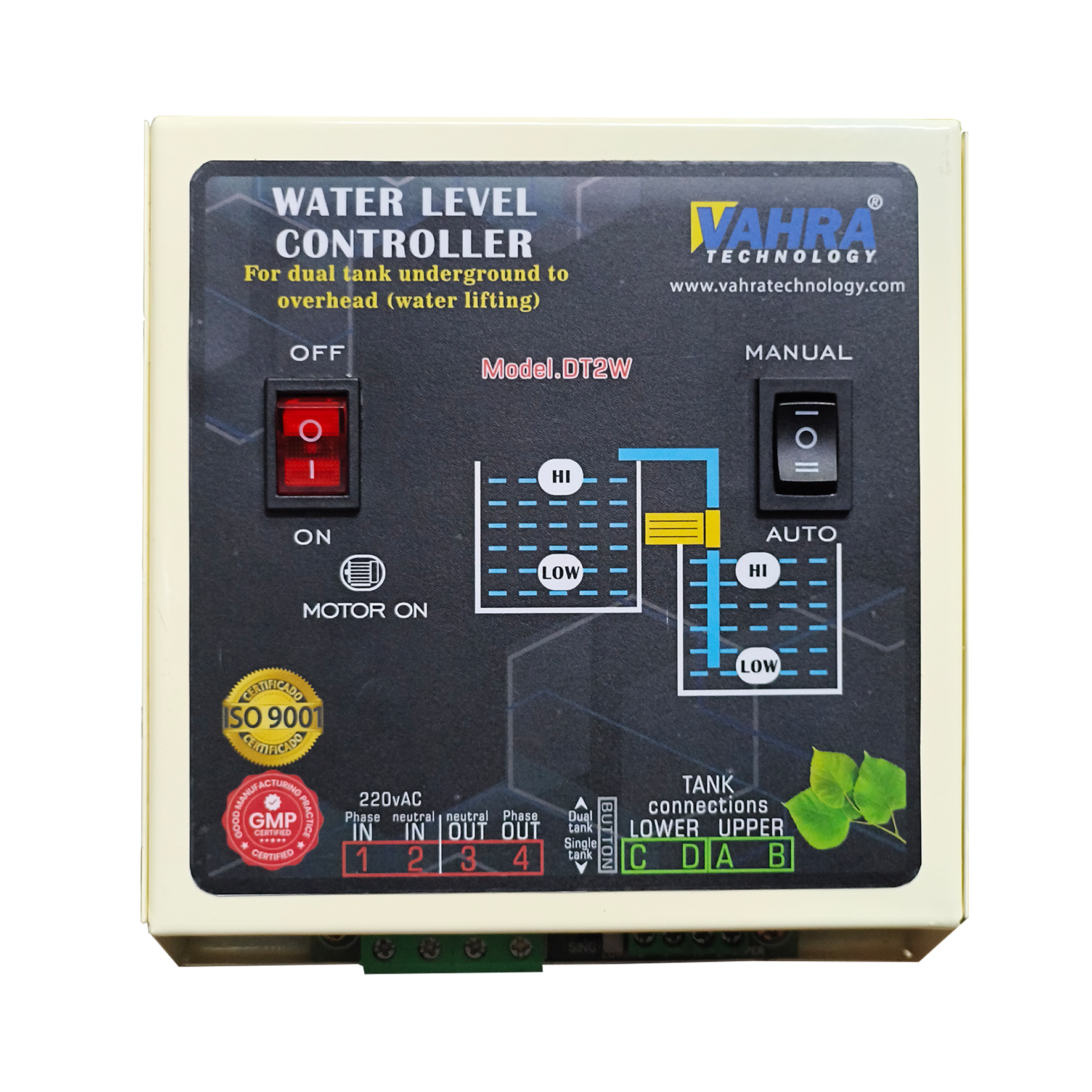

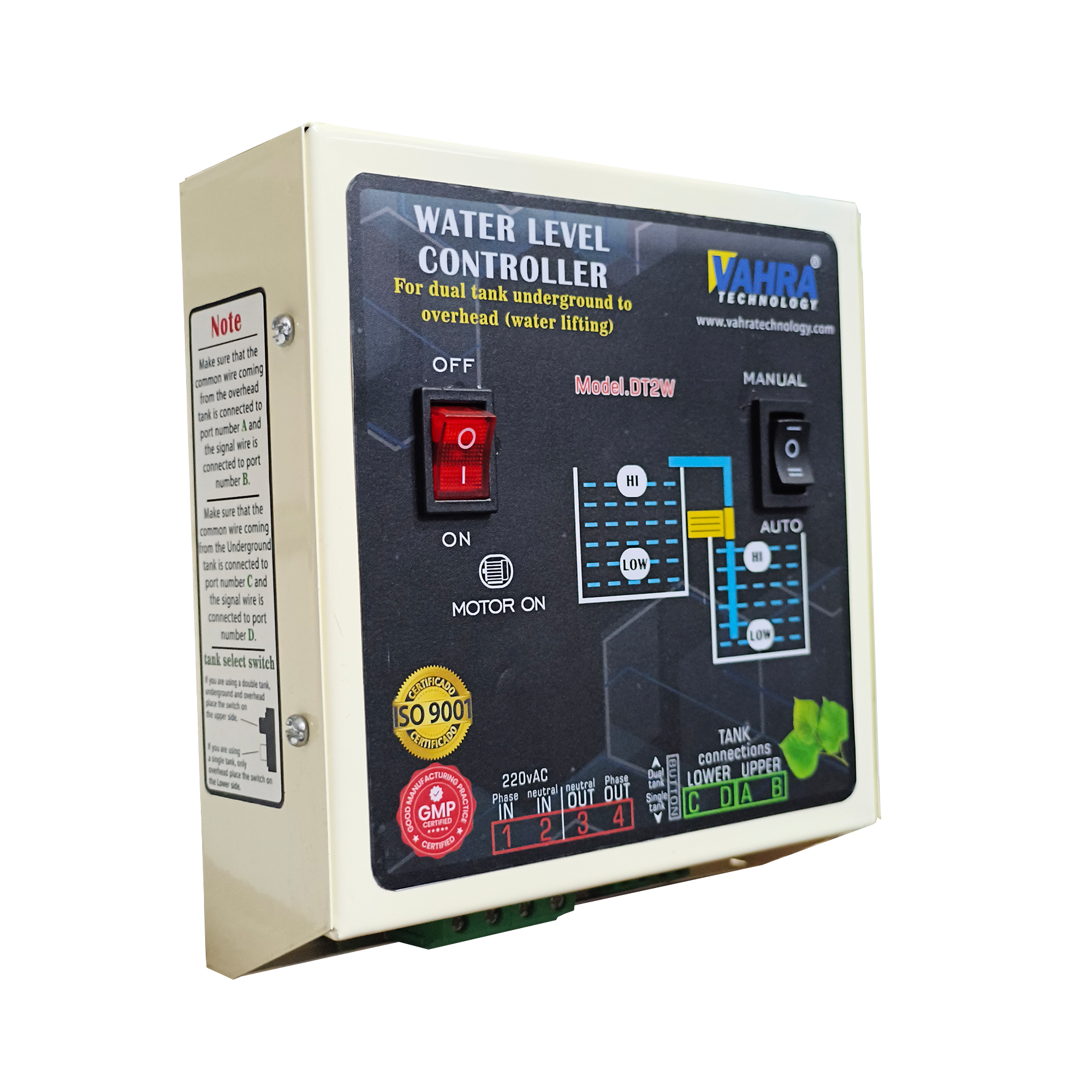

Automatic dual tank Water level controller – Model DT2W

This fully automatic dual tank Water level controller this is suitable for both overhead and underground tanks. It works with MCB type starters and without starters. The device monitors water levels, protects the motor from dry run and saves water, time, and energy. Only two wires are required of both tanks for installation.

Product Details Video:-YOU TUBE VEDIO

Features

• Works with MCB type starters and without starter
• Monitors both overhead and underground tanks
• Fully automatic operation based on tank water level
• Only 2 wires required per tank
• Compatible with carbon sensor kit or magnetic sensor kit

3-Mode Operation

• AUTO – Automatic operation based on tank level
• OFF – All functions disabled
• MANUAL – Motor can be operated manually
• TANK SWITCH – Set switch for Single tank (only overhead) or dual tank (underground tank and overhead)

Protections

• Dry run protection 100% with undergrourd tank sensor

Description

this dual tank Water level controller turns the motor ON/OFF automatically with monitring of both tanks , Suitable for motors up to 2HP.

Switch Modes

• Up – Manual mode (switch motor ON directly)
• Center – Off mode (no functions active)
• Down – Auto mode (device operates automatically)

Indications

• Motor ON LED
• Water level LED- overhaed Hi/Low and Underground Hi/Low
• Motor current (amperes) display
• Power LED

Product Specifications

• Operating voltage: 170V AC to 290V AC
• Frequency: 50–60Hz
• Current consumed: 6W
• Sensor operating voltage: 5V DC
• Relay rating: 30A (heavy duty)
• Suitable for motors up to 2HP

Sensor Kit Specifications

• Water resistant
• Ultra-low current (µA) for long life
• Easy installation for both carbon and magnetic kits

Packaging

• 1 Water Level Controller – Model DT2W
• 2 Sensor Kits
• 2 Gitti Screws

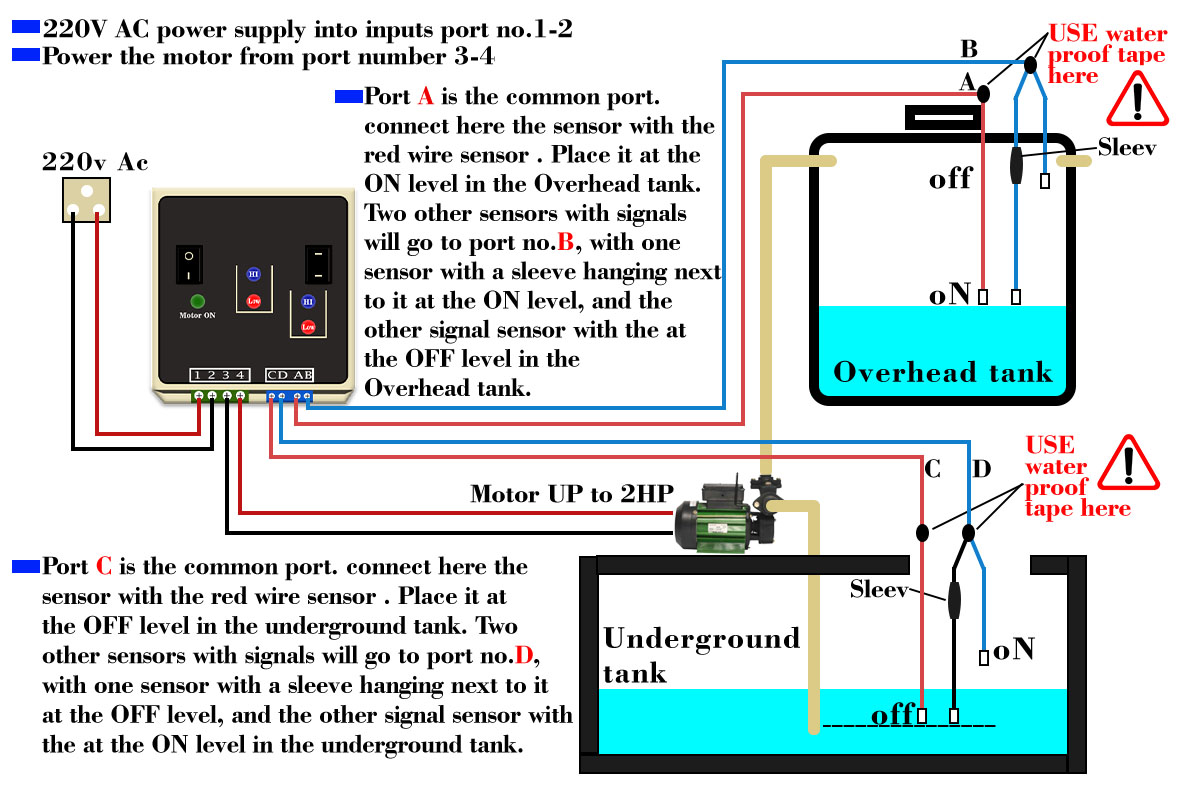

• 1 Fitting Diagram
• 1 Warranty Card
• Company Contact Details
